Small‑scale wind turbine power generation system covers vertical‑axis and horizontal‑axis types with power output ranging from 100W to 20kW. Equipped with core‑less permanent‑magnet levitation generator, the unit achieves ultra‑low start‑up wind speed. Featuring lightweight structure and simple assembly, it supports pole‑mount, roof‑mount and ground‑mount installation. The system can run as standalone off‑grid power supply or work with solar panels to build wind‑solar hybrid micro‑grid. With IP54 protection grade, built‑in electromagnetic brake & unloading safety protection, it adapts to households, communication base stations, farms, RVs, yachts and remote monitoring projects, with a design service life up to 10 years.
Small‑Scale Wind Turbine Power Generation System
- 1. **Ultra‑low Wind Speed Startup**
- Starts at 1.3‑2 m/s, generates power under low‑wind and turbulent‑wind conditions.
- 2. **Simple & Flexible Installation**
- Light‑weight structure. Supports pole‑mount, roof‑mount and ground‑mount; no heavy foundation for small‑power models.
- 3. **Two Type Options**
- Vertical‑axis for turbulent wind with multi‑color appearance; horizontal‑axis for higher efficiency in stable wind fields.
- 4. **Wind‑Solar Hybrid Ready**
- Compatible with solar panels and battery storage for reliable off‑grid power supply.
- 5. **Reliable Safety & Wide Adaptability**
- Electromagnetic brake for storm protection, IP54 rating, wide temperature range, 10‑year design lifespan.
Small‑Scale Wind Turbine Power Generation System
Small‑scale wind turbine system includes vertical‑axis and horizontal‑axis wind turbine series with power range from 100W up to 20kW. Adopting coreless permanent magnet levitation PMG generator, it features ultra‑low start‑up wind speed, simple installation and reliable electromagnetic braking protection. Widely used for off‑grid standalone power supply or hybrid solar‑wind complementary system. Suitable for households, communication base stations, street‑light monitoring, farms, RV and yacht. IP54 protection grade, working temperature from ‑40℃ to +80℃, maximum altitude up to 4500 m, service life up to 10 years.
Core Product Advantages
- Ultra‑low Wind Speed Start‑up: Start‑up wind speed as low as 1.3‑2 m/s, cut‑in wind speed 2.5‑3 m/s, good power output in low‑wind inland areas.

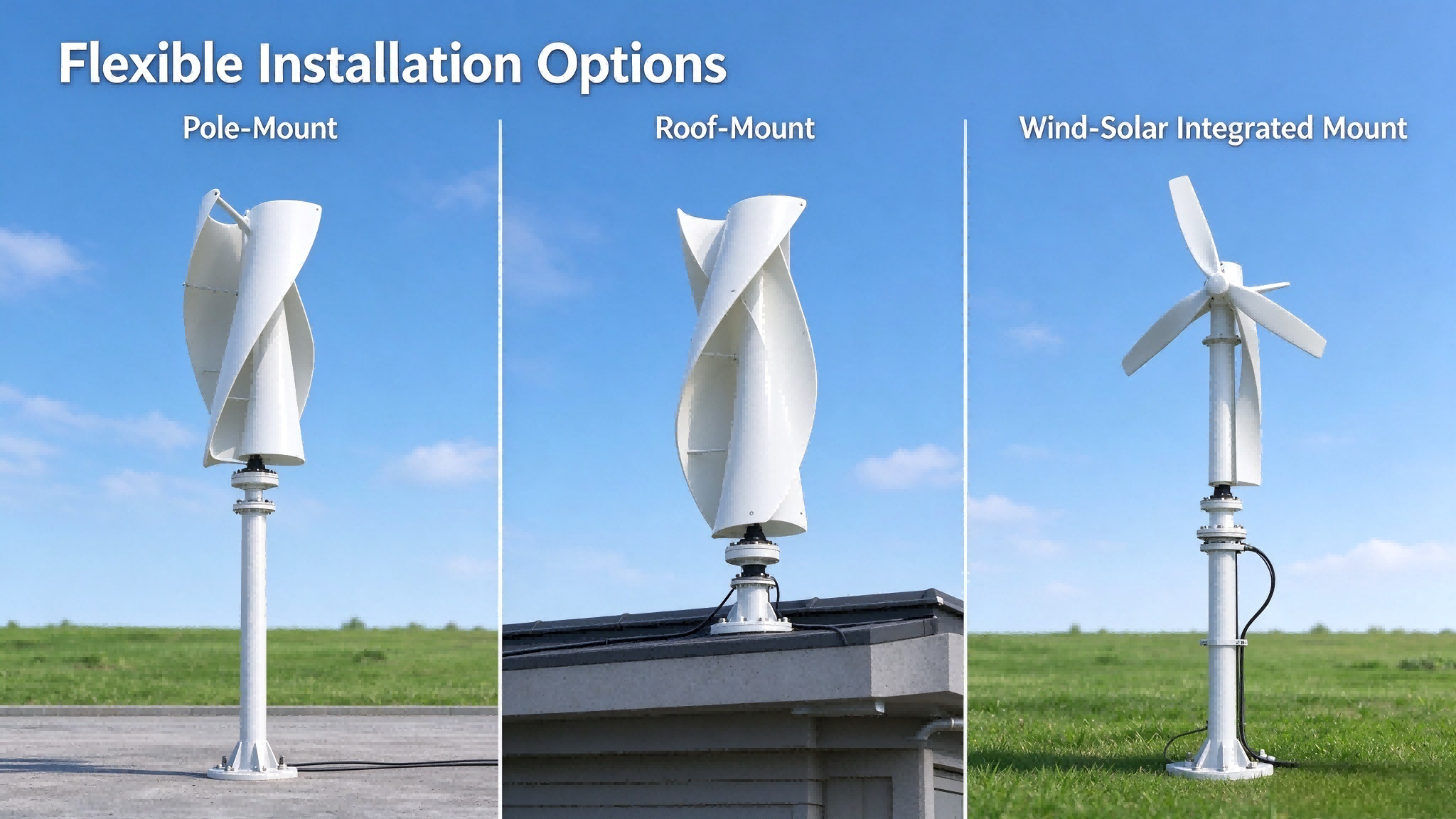

- Simple & Flexible Installation: Light‑weight unit, easy hoisting and assembly. Support roof‑mount, pole‑mount, ground‑mount. No complex foundation required for small‑power models.
- Vertical‑axis & Horizontal‑axis Options: Vertical axis turbine works well under turbulent, cross wind; horizontal‑axis provides higher energy conversion efficiency for stable wind field. Multiple color options for vertical‑axis models.

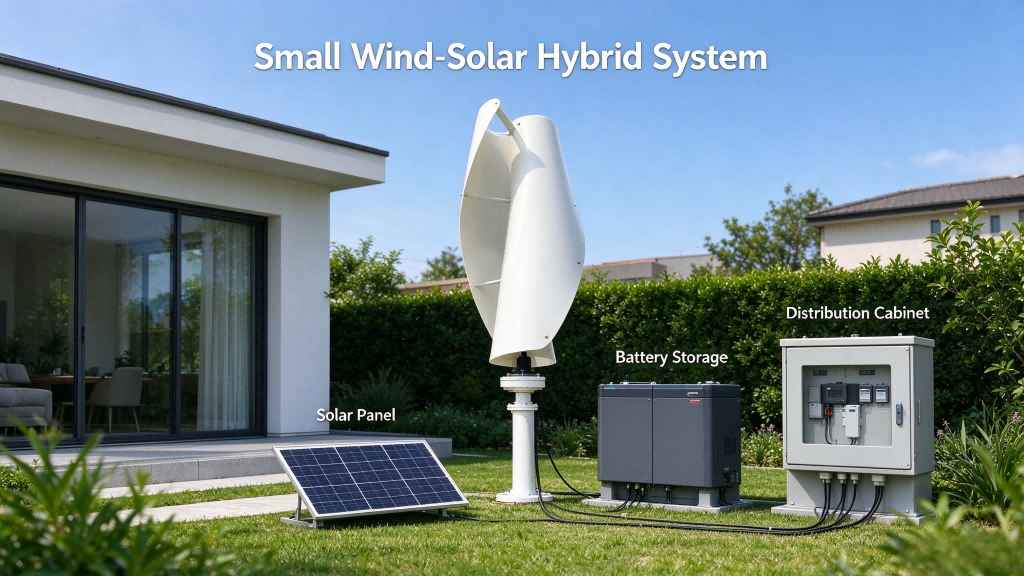

- Solar‑Wind Hybrid Ready: Perfectly compatible with solar panels, lead‑acid or lithium‑ion battery energy storage system for off‑grid micro‑power supply.
- Safe & Reliable Protection: Built‑in electromagnetic brake + unloading protection against over‑speed and over‑load; IP54 generator enclosure for dust‑proof and rain‑proof.
- Wide Environment Adaptability: Operate under ‑40℃~+80℃, humidity ≤90%, altitude ≤4500 m, survive maximum safe wind speed up to 40‑55 m/s.
- Long Service Lifetime: Fiberglass / aviation aluminum blades, coreless PMG generator, design service life up to 10 years.
Main Technical Parameters
| Item | Specification |
|---|---|
| Available Power Range | 100W ~ 20kW (Vertical‑axis & Horizontal‑axis) |
| Start‑up Wind Speed | 1.3m/s ~ 4m/s (model‑dependent) |
| Cut‑in Wind Speed | 2.5m/s ~ 5m/s |
| Rated Wind Speed | 10‑13 m/s |
| Max Safe Survival Wind Speed | 40‑55 m/s |
| Generator Type | Coreless three‑phase permanent magnet levitation PMG generator, NdFeB magnet |
| Generator Protection Class | IP54 |
| Blade Material | Fiberglass / Nylon / Aviation aluminum alloy (per series) |
| Over‑speed & Overload Protection | Electromagnetic brake + electric unloading device |
| Rated Output Voltage(AC) | 12V /24V /48V /96V /220V /380V optional |
| Operating Temperature | ‑40℃ ~ +80℃ |
| Max Working Altitude | ≤4500 m |
| Ambient Humidity | ≤90% non‑condensing |
| Design Service Life | 10 years |
| Installation Method | Pole‑mount / Roof‑mount / Ground‑mount |
| System Compatibility | Off‑grid standalone, solar‑wind hybrid, lithium‑ion / lead‑acid battery storage |
Representative Model Series Overview
| Series Type | Category | Power Range | Feature Highlights |
|---|---|---|---|
| Decorative vertical‑axis series | Vertical‑axis | 100W‑10kW | Multi‑color option, good for turbulent wind, aesthetic appearance, roof‑mount friendly |
| H‑type vertical‑axis series | Vertical‑axis H‑type | 400W‑20kW | Aviation aluminum blade, large‑power vertical‑axis option |
| Small horizontal‑axis series | Horizontal‑axis | 400W‑20kW | Higher wind energy utilization, mature horizontal‑axis small‑wind technology |
Typical Application Scenarios

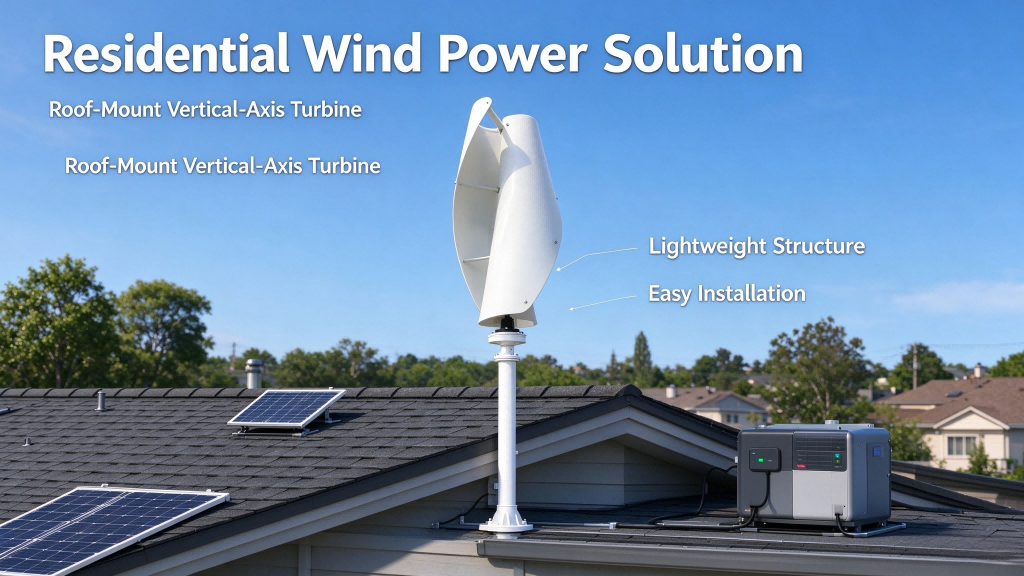

✅ Household Off‑grid Power Supply: Remote family without grid access, match battery storage for daily lighting & small‑load household appliances.
✅ Communication Base Station: Telecommunication tower, monitoring station, IoT sensor power supply in remote areas.
✅ Street Light & Monitoring System: Wind‑solar hybrid street lamp, road monitoring, garden landscape lighting.

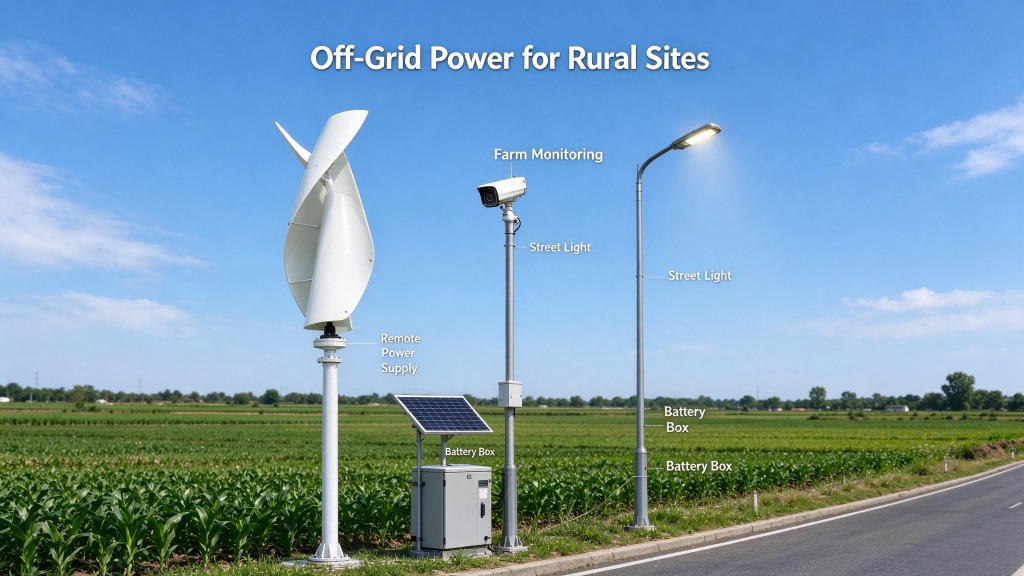

✅ Farm & Pasture: Agricultural remote monitoring, water pump auxiliary power for farms and ranches.
✅ RV, Yacht & Mobile Vehicle: Mobile renewable power for caravan, yacht and marine small‑load equipment.
✅ Island & Remote Outpost: Off‑grid micro‑grid, hybrid with PV and battery for islands and field stations.
Frequently Asked Questions
Q1: Is this wind turbine difficult to install?
A1: Small‑power models (below 5kW) are designed for simple installation. Only pole support, basic fasteners and controller‑battery system are required. No heavy‑duty concrete foundation for low‑power units. Installation manual and wiring guidance are provided. Larger models (10‑20kW) need professional team for tower erection.
Q2: Vertical‑axis vs horizontal‑axis, which one shall I choose?
A2: Vertical‑axis turbine adapts to turbulent, cross‑direction wind, suitable for roof, complex urban landscape, aesthetic‑priority projects. Horizontal‑axis turbine has higher energy conversion efficiency under stable, smooth wind field, recommended for open farmland & suburban sites.
Q3: Can it work together with solar panels?

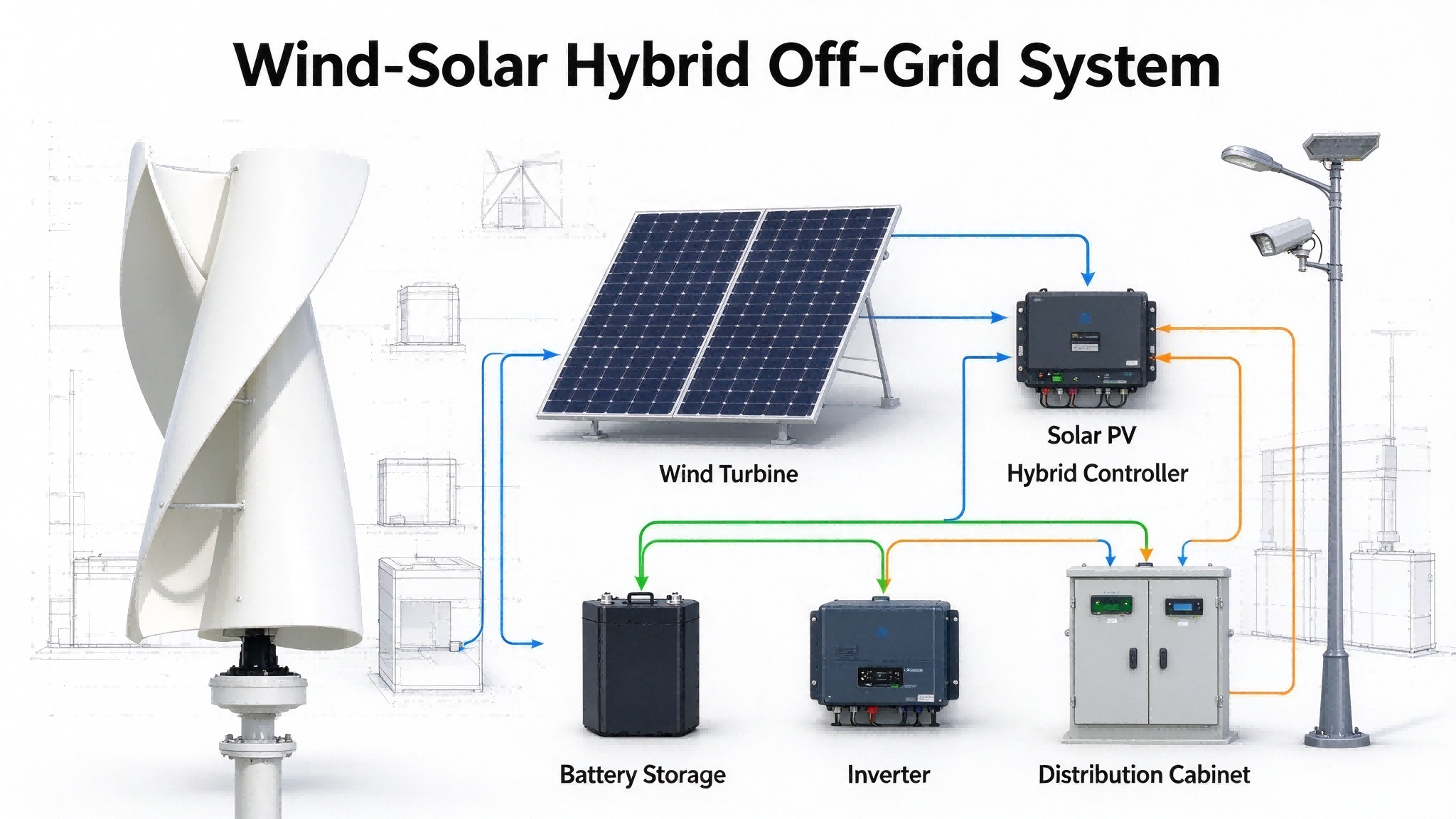

A3: Yes. The whole series supports wind‑solar complementary off‑grid system. Match with wind‑solar hybrid controller and battery bank, improve power supply stability for all‑weather off‑grid projects.
Q4: What wind condition is required?
A4: Suggested average annual wind speed ≥3.0 m/s. It can start rotating at 1.3‑2 m/s but effective power generation starts from cut‑in speed 2.5‑3 m/s. Site with obstacles (high buildings, dense trees) will reduce actual output.
Q5: Does the turbine include controller and battery?
A5: The default quotation includes wind turbine main unit. Controller, inverter, tower pole and battery are optional accessories, which can be selected and configured according to customer demand.
Q6: How about noise level?
A6: Vertical‑axis models produce very low noise. Small horizontal‑axis units have low noise under normal working speed, suitable for residential and garden environment.
Q7: What protection is available for typhoon / strong‑wind weather?
A7: Equipped with electromagnetic brake and unloading protection. When wind speed exceeds safe range, brake locks rotor to avoid damage. Still need to select proper model according to local maximum historical wind speed.
Q8: What is the expected pay‑back period for small‑scale wind system?
A8: For off‑grid sites that would otherwise rely on expensive diesel generator, static payback is around 4‑7 years, affected by local real wind resource, load consumption and battery configuration.
